Home › Track lighting › Modular Minude Track 48V Suspended 45 1x LED | Track lighting fixture
Black Friday EN

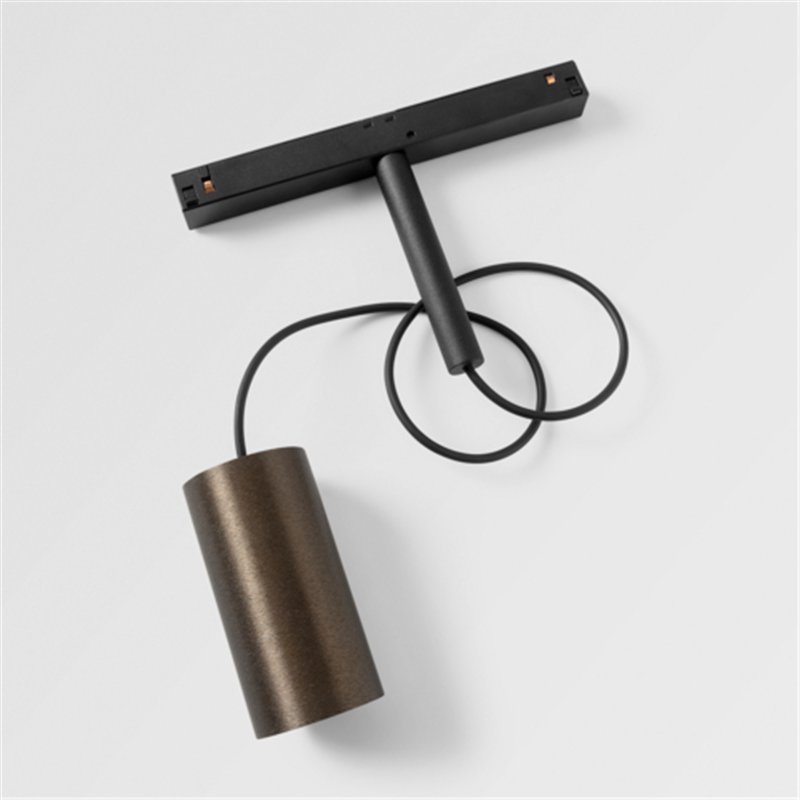

Modular Minude Track 48V Suspended 45 1x LED | Track lighting fixture Dimmable with 1-10V 2700 Bronze (brushed - anodized) 29,2°
-10% Modular Lighting

Modular Minude Track 48V Suspended 45 1x LED | Track lighting fixture Dimmable with 1-10V 2700 Bronze (brushed - anodized) 29,2°

€ 382,46 € 344,21 incl. VAT
Reference 11462082
Colour Bronze (brushed - anodized)
Black (struc) White (struc) Bronze (brushed - anodized) Champagne (brushed - anodized) Chrome (black) Black (brushed - anodized) Gray (cast - matte) Silver bronze (brushed - anodized)
Dimming Dimmable with 1-10V
i

What is 1-10V dimming?
1-10V dimming controls the lamp with an analogue signal over two extra control wires. Often used in professional installations.

Dimmable with 1-10V Dimmable with DALI
Colour temperature 2700
i

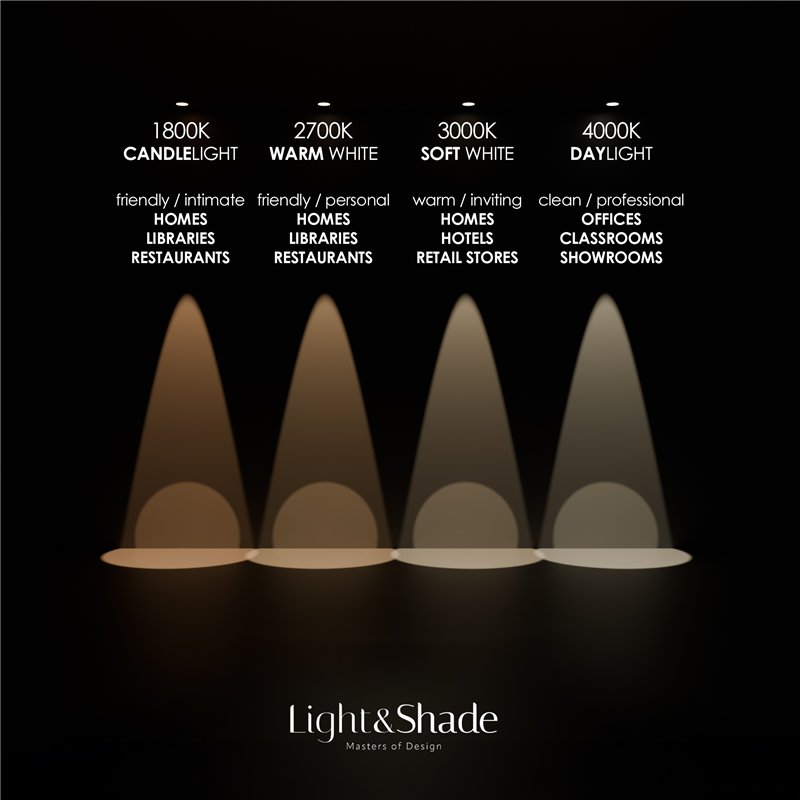

What does the colour temperature in Kelvin mean?
Colour temperature is expressed in Kelvin (K). 2700-3000K is warm and cosy, 4000K is neutral and functional, 6500K comes close to daylight.

2700 3000
Reflector 29,2°
31,2° 28,9° 29,6° 29° 29,2° 29,3°
Compare all versions
ColourDimmingColour temperatureReflectorLumen Reference Price
Bronze (brushed - anodized)Dimmable with 1-10V270029,2°595 11462082 € 344,21
Chrome (black)Dimmable with DALI300029°590 11462380 € 348,48
Chrome (black)Dimmable with 1-10V300029°590 11462280 € 337,59
Chrome (black)Dimmable with DALI270029°578 11462180 € 348,48
Chrome (black)Dimmable with 1-10V270029°578 11462080 € 337,59
Champagne (brushed - anodized)Dimmable with 1-10V270029,6°605 11462041 € 344,21
Silver bronze (brushed - anodized)Dimmable with 1-10V270029,3°599 11462084 € 344,21
Black (struc)Dimmable with 1-10V270028,9°579 11462032 € 330,82
White (struc)Dimmable with 1-10V270029,6°598 11462009 € 330,82
Black (brushed - anodized)Dimmable with 1-10V300031,2°698 11462281 € 344,21
Bronze (brushed - anodized)Dimmable with 1-10V300029,2°607 11462282 € 344,21
Champagne (brushed - anodized)Dimmable with 1-10V300029,6°618 11462241 € 344,21
Silver bronze (brushed - anodized)Dimmable with 1-10V300029,3°612 11462284 € 344,21
Black (struc)Dimmable with 1-10V300028,9°591 11462232 € 330,82
White (struc)Dimmable with 1-10V300029,6°610 11462209 € 330,82
Black (brushed - anodized)Dimmable with 1-10V270031,2°586 11462081 € 344,21
Bronze (brushed - anodized)Dimmable with DALI270029,2°595 11462182 € 354,93
Champagne (brushed - anodized)Dimmable with DALI270029,6°605 11462141 € 354,93
Silver bronze (brushed - anodized)Dimmable with DALI270029,3°599 11462184 € 354,93
Black (struc)Dimmable with DALI270028,9°579 11462132 € 341,52
White (struc)Dimmable with DALI270029,6°598 11462109 € 341,52
Black (brushed - anodized)Dimmable with DALI300031,2°698 11462381 € 354,93
Bronze (brushed - anodized)Dimmable with DALI300029,2°607 11462382 € 354,93
Champagne (brushed - anodized)Dimmable with DALI300029,6°618 11462341 € 354,93
Silver bronze (brushed - anodized)Dimmable with DALI300029,3°612 11462384 € 354,93
Black (struc)Dimmable with DALI300028,9°591 11462332 € 341,52
White (struc)Dimmable with DALI300029,6°610 11462309 € 341,52
Black (brushed - anodized)Dimmable with DALI270031,2°586 11462181 € 354,93
Gray (cast - matte)Dimmable with 1-10V270029°639 11462004 € 330,82
Gray (cast - matte)Dimmable with DALI270029°639 11462104 € 341,52
Gray (cast - matte)Dimmable with 1-10V300029°653 11462204 € 330,82
Gray (cast - matte)Dimmable with DALI300029°653 11462304 € 341,52
Not included: 48V power supply (per installation). Choose here.

This fixture runs on a 48V system and needs a 48V power supply. One power supply can feed several fixtures: choose it based on the total power of your installation. If you already have one, you do not need to add anything.

Modular LED Driver Constant Voltage 48V Surface (For Surface Mounting) 150W € 266,81
Add an accessory
Modular Motion Sensor Outside € 65,29
Modular Switch Dimmer € 27,17
Modular Switch Smart Button € 27,17
Modular Switch Wall Module € 54,40
Modular Track 48V Connection 180° Electrical (For Surface Mounting) € 32,67
Modular Track 48V Connection 180° Electrical/Mechanical (For Surface High, Recessed and Recessed Trimless Mounting) € 38,12
Modular Track 48V Connection 90° Electrical/Mechanical (For Recessed Mounting) Inside € 143,21
Modular Track 48V Connection 90° Electrical/Mechanical (For Recessed Mounting) Inside € 143,21
Modular Track 48V Connection 90° Electrical/Mechanical (For Recessed Mounting) Outside € 143,21
Modular Track 48V Connection 90° Electrical/Mechanical (For Surface Mounting) Inside € 143,23
Modular Track 48V Connection 90° Electrical/Mechanical (For Surface Mounting) Outside € 143,23
Modular Track 48V Connection 90° Electrical/Mechanical (For Suspended Mounting) Inside € 143,23
Modular Track 48V Connection 90° Electrical/Mechanical (For Suspended Mounting) Outside € 143,23
Modular Track 48V Connection Flexible Electrical/Mechanical € 115,93
Modular Track 48V Cover 1000 € 42,96
Modular Track 48V Cover 2000 € 57,29
Modular Track 48V Endplate (2) € 11,46
Modular Track 48V Endplate (For Recessed Mounting) (2) € 10,49
Modular Track 48V Endplate (For Recessed Trimless Mounting) (2) € 13,90
Modular Track 48V High Connection 180° Up/Down Electrical/Mechanical (For Suspended Mounting) € 59,90
Modular Track 48V High Connection 90° Up/Down Electrical/Mechanical € 211,42
Modular Track 48V High Endplate (2) € 13,63
Modular Track 48V High Profile Suspended Up/Down 1000 € 203,19
Modular Track 48V High Profile Suspended Up/Down 2000 € 356,95
Modular Track 48V High Profile Suspended Up/Down 3000 € 510,73
Modular Track 48V Mounting Bracket Climate Control Ceilings (10) € 163,68
Modular Track 48V Mounting Bracket Climate Control Ceilings (10) incl.SC € 361,46
Modular Track 48V Power Feed Left € 40,92
Modular Track 48V Power Feed Right € 40,92
Modular Track 48V Profile Recessed 1000 € 190,58
Modular Track 48V Profile Recessed 2000 € 299,48
Modular Track 48V Profile Recessed 3000 € 408,38
Modular Track 48V Profile Recessed Trimless 1000 € 163,35
Modular Track 48V Profile Recessed Trimless 2000 € 261,36
Modular Track 48V Profile Recessed Trimless 3000 € 359,37
Modular Track 48V Profile Surface 1000 € 88,19
Modular Track 48V Profile Surface 2000 € 181,22
Modular Track 48V Profile Surface 3000 € 263,60
Philips Hue dimmer switch EU € 32,62
Philips Hue motion sensor € 48,95
Add to cart
Discover all of Modular Lighting › Description and all product details ↓

Description

The Modular Minude Track 48V Suspended 45 1x LED | Track lighting fixture is a sophisticated lighting solution that combines clean architectural aesthetics with exceptional versatility. Its suspended design creates a refined visual presence while maintaining a minimalist appearance, making it suitable for a wide range of contemporary interiors. Mounted on a 48V track system, the fixture offers flexibility in positioning and lighting design. Featuring advanced LED technology, it delivers high-quality illumination for both accent and general lighting applications. Available in various light colour and dimming protocol options, it can be tailored to the specific requirements of residential, retail, hospitality and office projects. With an IP20 rating, it is intended for use in dry indoor environments.

Frequently asked questions

What is 1-10V dimming?

1-10V dimming controls the lamp with an analogue signal over two extra control wires. Often used in professional installations.

What does the colour temperature in Kelvin mean?

Colour temperature is expressed in Kelvin (K). 2700-3000K is warm and cosy, 4000K is neutral and functional, 6500K comes close to daylight.

How much light does this lamp give?

This lamp has a light output of about 595 lumens. The higher the number of lumens, the more light the lamp produces.

Is this product suitable for indoor or outdoor use?

IP20 is suitable for dry indoor spaces. No protection against water.

Product details

Luminous flux
i

How much light does this lamp give?
This lamp has a light output of about 595 lumens. The higher the number of lumens, the more light the lamp produces.

595
FamilyMinude
DesignerModular Lighting
IP Code
i

Is this product suitable for indoor or outdoor use?
IP20 is suitable for dry indoor spaces. No protection against water.

IP20
InformationLED gear included.
Power supply48V
Application"Track"
UsageIndoor
Armature typeTrack lighting
Appliance classIII
FixationCeiling
Connection voltage48Vdc
DimmableYes
Number of lamps1
Lamp type(s)LED
Driver includedYes
Recupel5.05.02
Lamp(s) includedYes
Power11 W
Weight300 g
Sales unitPer unit
Warranty2 years
StyleModern / Architectural
